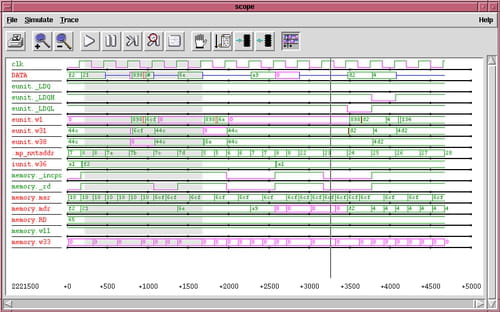

TkGate is a program designed for the simulation of a digital circuit on Linux. It also has a graphical editor td / tk. It comes along with tutorial and examples of circuits to better understand their operation and to help beginners. You can also create hyperlinks to move about in circuit or load other files.
Latest update on May 21, 2012 at 10:54 AM.
