Videos with formats like DivX, FLV or DVD can now be enjoyed not just on the PC
, with which they are compatible, but also on the television screen. For this, the computer needs to be connected to the the TV set
. This is possible if the hardware of the the PC
and the TV have certain required connectors. The computer needs to have a video card with a TV-OUT connector
and the two devices should be connected with a cable. This connector must be a plug IN from the computer. The TV also needs to have a TV-IN or a VIDEO-IN connector
and additionally a LINE-OUT connector from the soundcard is also required. The connectivity between the PC
and the TV set
can be configured in Windows settings
It is possible to connect your PC to your television set to enjoy DivX, FLV or DVD video formats that are compatible on your computer but on no other available players. There are simple ways to do so but both your PC and your TV set must meet some requirements.
Requirements for your PC
Your computer must have a Video card with a TV-OUT connector. The connection will normally be integrated in your Video card and located at the back of your computer. You can also do this with your laptop as most of them have this type of connector.
A TV-OUT connector cable will be plugged in both devices to link them to each other. The cable can indicate which line goes in and which one goes out, so bear in mind that you plug IN your TV set OUT from your computer.
The following illustration should make it easy to understand how the connection should be made.
You will also have to get a LINE-IN for your Soundcard from your TV to your computer.
Requirements for your TV set
You will have to get the same kind of connector for your TV set called the TV-IN or VIDEO-IN connector. However, you will also have to get a LINE-OUT connector for the Soundcard.
If you do not have a correct connector for your TV, you can either use your VCR or an additional round connector that looks like an antenna connector device. With your VCR, you can set your TV to the VCR channel.
Below is the example of a round connector that you can use for your TV set.

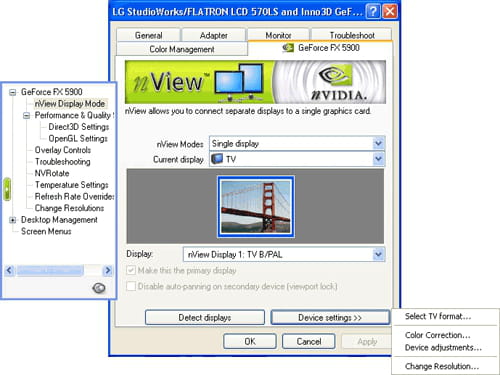

You have to change the Windows settings for the connection to be successful.
- Right-click on the desktop
- Click Properties
- In the menu, select TV output
If you are having difficulty, try reducing the resolution to 800x600.
- The menu appears only if everything is connected correctly.
- The S-video cable was originally in black and white.
- The S-video has a horizontal keyway
Currently on new computers, manufacturers are finally connecting the color. The same goes for TVs. The S-video color cables are more than pin cable black and white.
Otherwise, there is always the possibility of using a composite cable to replace the S-video.
