Windows - knowing the IP configuration of a PC

April 2018

In order to communicate with other PCs it is necessary to have an IP configuration. This is possible when there is a network of internet connections. It is also necessary to get all kinds of details regarding the IP configuration. Now use the IP on the Windows machine by installing the IP configuration commands. Open the DoOSs command in Windows. Click on the start menu, and then click on the run option. Afterwards, type CMD in the window. Last but not the least, click OK or press enter. Now it is time to enjoy the IP configuration in the window.

IP configuration of a PC
  • Open a DOS command window:
  • Open the Start menu
  • Click on Run
  • Type cmd
  • Click on OK

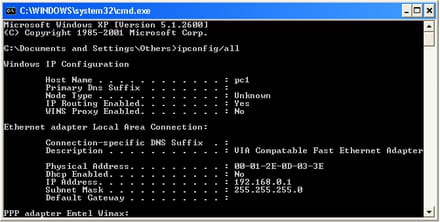

  • In the MS-DOS window, type the following command ipconfig/ all

Note that you can use a single command, instead of typing "cmd" in Run, type cmd /K ipconfig /all, and then confirm (by clicking OK or press the Enter key on the keyboard)

The command is executed directly.
